InSight | Snake Robot


A Robotic Solution for Internal Inspections & Maintenance

The use of robotics in the oil and gas industry is becoming a hot topic.


Discussions with engineers made it clear that:

  • a better view of a number of processes would be a great benefit

  • 80% of downtime is due to preparation for human entry

  • a snake robot capable of entering towers and vessels via a small diameter tapping point would be the solution

The research and development team at Process Vision Ltd have responded to this need by developing InSight - a robot snake. It comprises of a maneuverable optical system, which can monitor the internal operation of processing systems while the plant is operating. The small diameter snake provides a live video feed to provide real time operations troubleshooting and equipment inspection.


InSight is designed for high pressure combustible gas systems. It will be able to safely access systems via existing tapping points and become a versatile tool to perform a number of tasks that currently require a plant shutdown. InSight will have the ability to investigate the internal condition of piping and pressure vessels Additional tools will enable operators to troubleshoot operations problems such as foaming or fouling.


The aim of project InSight is to:

  • increase availability by reducing the need for inspection shutdowns

  • improve safety by reducing the need for confined space working

  • reduce shutdown duration as online diagnostics will help shutdown planning and logistics

Insight into InSight - Demonstration Day

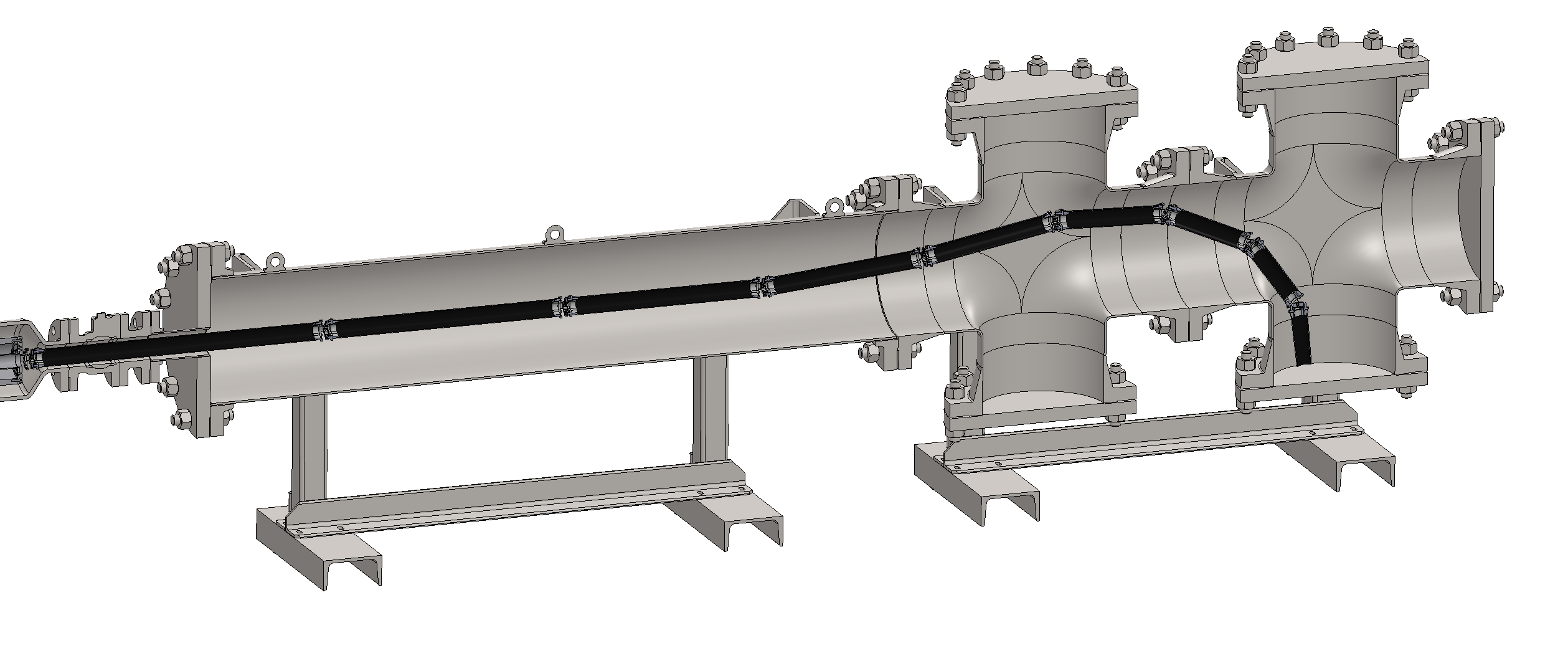

Process Vision Ltd are planning to host a demonstration day which will see InSight deployed into a high pressure vessel where it will locate liquid, pull the liquid out of the vessel and return to the low pressure side without loss of containment.

The demonstration day will be in the New Year - details of the event date will be posted here. If you would like to be sent an invitation directly to ensure you don't miss any announcements, please click here to register your interest and an email will be sent to you closer to the demonstration day date.

The R&D team had fun producing some festive footage to demonstrate the movement abilities of InSight!
